Sludge Dewatering Machine
VR
  • Products Details

Considering the industry development and customers' requirements, Shandong Better Environmental Protection Technology Co.,ltd has dedicated to the product development and we've made great achievements. Mining Sludge Dewatering Vacuum Belt Filter, Gypsum dewatering system can bring greater value to customers and help customers gain a firm foothold in the complex market environment. Shandong Better Environmental Protection Technology Co.,ltd will keep focusing on customers' needs and keep up with the industry trends so as to develop the products that better satisfy customers. Our wish is to cover a wide range of global markets and win wider recognition from customers all over the world.

Condition:NewApplicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, AustraliaPlace of Origin:Shandong, China
Brand Name:BetterWarranty:1 Year
After Warranty Service:Video technical support, Online support, Spare parts, Field maintenance and repair serviceLocal Service Location:Egypt, Philippines, Kenya, Argentina, Bangladesh
After-sales Service Provided:Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online supportAuthority Approved:SGS
certificate:ISO 9000material:carbon steel & stainless steel
color:customized

Description:

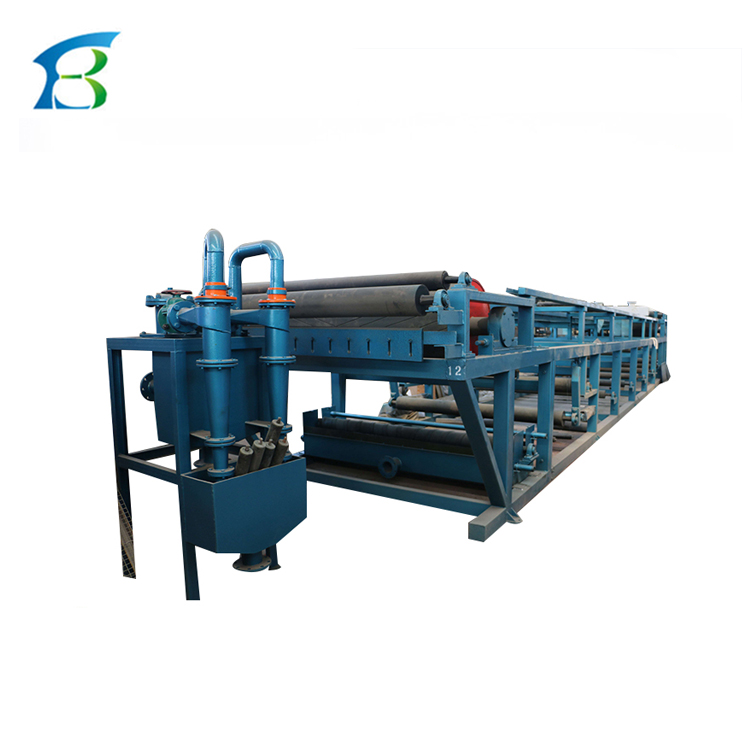

DU rubber vacuum belt filter press is a high efficient solid-liquid separation device absorbed advanced technology at home and abroad. It has a fixed vacuum box where tape slides on to form a sealing structure and solid-liquid is separated under vacuum sub pressure. Filter area is able to auto-filter, wash cake, discharge sludge, regenerate cloth and collect mother liquor and washing liquor in section.
It features high efficiency, large productivity, low water-content of cake, simple operation and easy maintenance. After years of improvement, its technology achieved the international advanced level and is widely used in solid-liquid separation for metallurgy, mining, chemical engineering, paper mill, food, pharmaceutical, coal washing, environmental protection industries, especially for calcium sulfate dewatering in FGD.



Features

1. Modularized design is for easy installation and transportation.
2. High auto degrees: Consecutive auto feeding, filtering, washing, dewatering, discharging, cloth cleaning improves production efficiency.
3. Fast filter speed: large particles will settle at the lower layer while small particles upper layer when material goes through sedimentation area. Reasonable structure of filter cake ensures low resistance of liquid for fast filter of thin layer.
4. Convenient filter technology: cake thickness, water vol., counter current decantation stages, vacuum degree, filter speed can be adjusted for optimistic effect.
5. Fine decantation effect: even and thorough multi-stage advection or counter current decantation makes collection and reuse of mother liquor and washing liquor separately.
6. DSC for control system ensures site control and remote control automatically.



Flow Process Diagram



A. Feeding device   B. Spraying device   C. Adjusting device   D. Washing device



E. Air-liquid separator   F. Reflux pump   G. Vacuum pump   H. Rubber belt



I. Filter cloth   J. Vacuum box     K. Friction belt


Vacuum Box and Lifting Device
Vacuum box is connected by section as a whole and each section is connected with liquid collection pipe to form a vacuum liquid collection system. There is also a lifting device for easy change of friction belt.

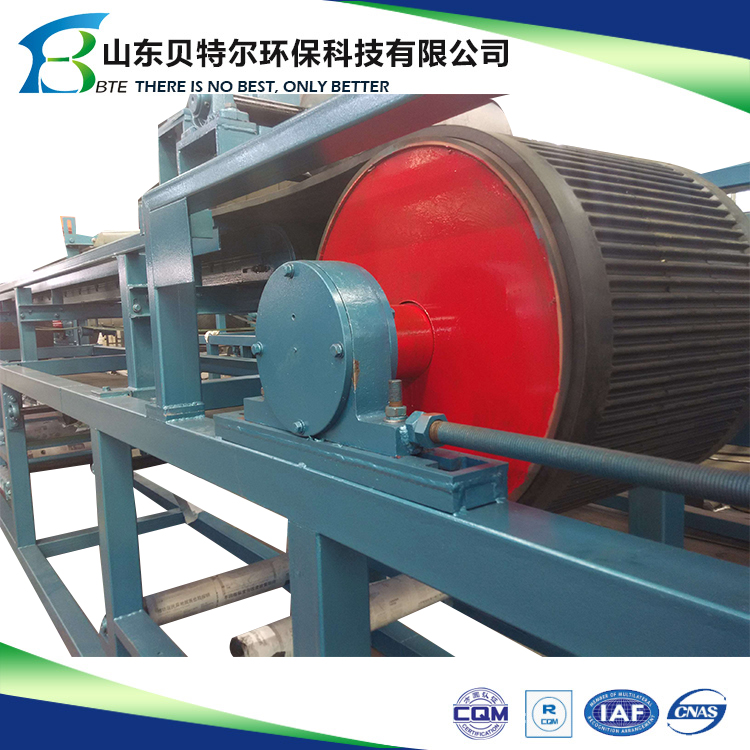

Adjusting Device and Tightening Device
Auto-adjustment of cloth by cylinder or gasbag is used for normal operation.
Tightening device works through screws for sufficient friction to avoid deviation.



Washing Device
Water jet for cloth and belt washing and sealed vacuum box for site cleaning, head is from US spraying system Co. for better performance.
Counter current type and shower device offers two choices as advection or counter current decantation for different materials so as to wash completely.

Control System
Remote and field control is convenient for unattended operation.



Sideway of Belt and Shutter
Four-layer EP200 polyester fabric for loop rubber band and composite structure for sideway, that is, wave sideway is connected with parallel tape ensures elasticity so as to avoid fraction of sideway and outflow of liquor when it goes through the roller. At the top of rubber band is a row of groove with vacuum discharging hole on it, pure rubber layer for discharging hole part can prevent liquid flows into rubber tape through cloth thus greatly improves its life time.



Technical parameter

Model

Filter area

(m2)

Filter length

(mm)

Main motor

power( kw)

Vacuum

consumption(m3/min)

Vacuum box

power(kw)

400

1.0

2500

3

2

1.1

630

5.0

7900

3

15

30

6.3

10000

3

15

30

1300

7.3

5600

5.5

15

30

9.1

7000

5.5

20

37

10.9

8400

5.5

20

37

15.0

11200

5.5

20

37

18.2

14000

7.5

30

45

20.0

15400

7.5

30

45

1800

20.0

11200

7.5

30

45

25.0

14000

11

42

55

30.0

16800

11

42

55

2000

20.0

10000

11

42

55

25.0

12500

11

42

55

29.0

14000

11

42

55

33.6

16800

11

66

55

39.2

19600

15

66

75

2500

25.0

10000

11

30

55

30.0

12000

11

42

55

35.0

14000

15

42

75

42.0

16800

22

86

110

49.0

19600

22

86

110

56.0

22400

30

97

160

3150

61.7

19600

30

100



70.6

22400

30

123



79.4

25200

30

141
