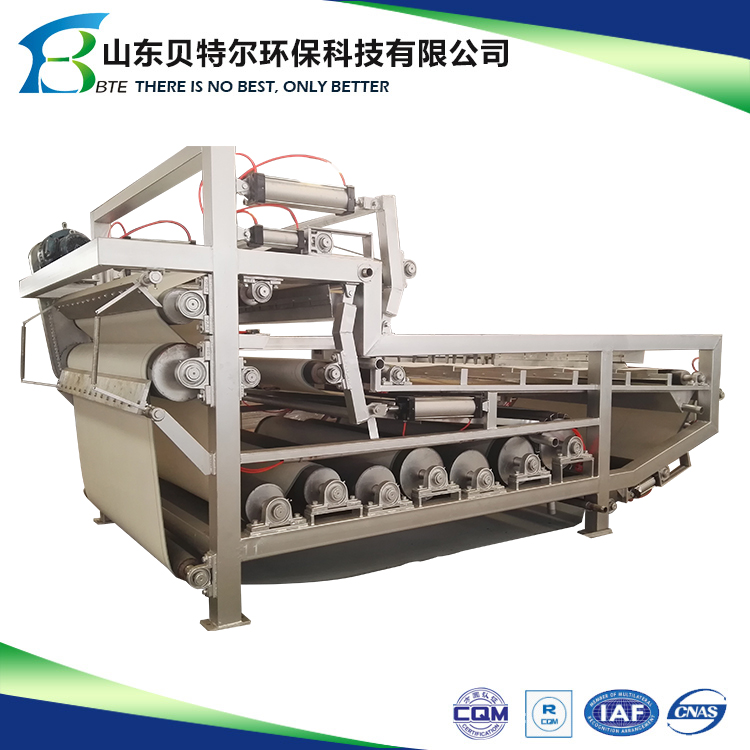

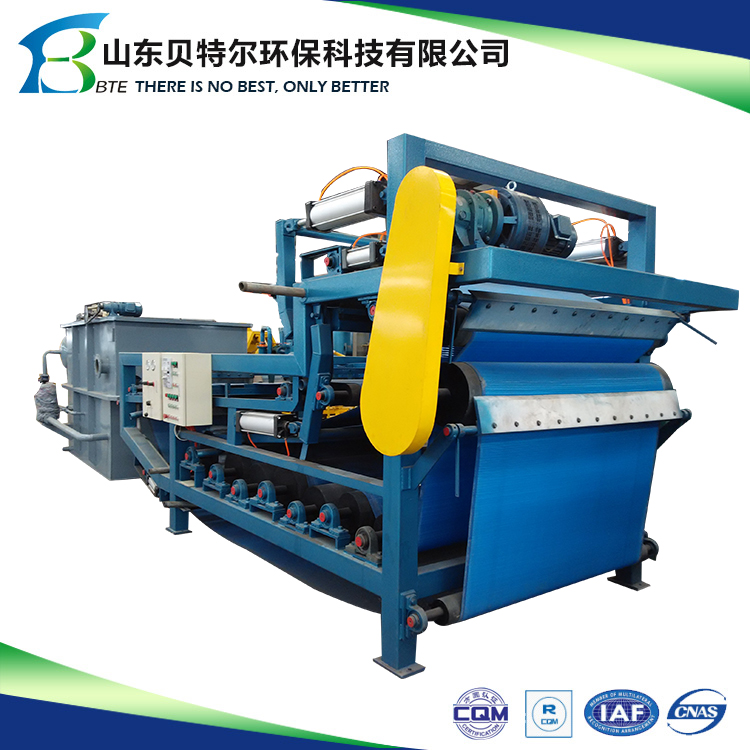

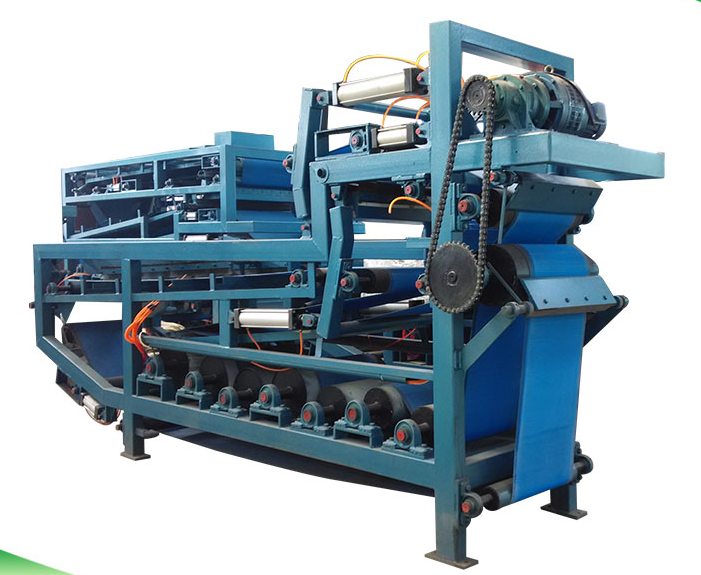

Sludge Dewatering Machine
VR
  • Products Details

Shandong Better Environmental Protection Technology Co.,ltd will come to you with special care and you can easily contact them for any information that you may need about the product. The quality of the Video Technical Support 1500mm Belt-filter-press-price 500-4000mm Rbyl Belt Filter Press is at the leading level in the industry and is inseparable from the hard work and innovation of outstanding technical personnel. Compared with the traditional ones, it better meets the market demands.

Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising CompanyShowroom Location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Video outgoing-inspection:Not AvailableMachinery Test Report:Provided
Marketing Type:New Product 2022Warranty of core components:1 Year
Core Components:GearCondition:New
Automatic Grade:AutomaticPlace of Origin:Shandong, China
Brand Name:BetterPower:5.2-7.0kw
Weight:500 kgWarranty:1 Year
After Warranty Service:Video technical supportAfter-sales Service Provided:Engineers available to service machinery overseas
Model:RBYL500-4000Belt width:500-4000mm
Feed concentration:0.8-8%Discharging concentration:25-45
Material:carbon steel or stainless steelPackage:seaworthy package

1. Overview

Introduced the advanced technology from American, RBYL-Belt filter press is a sewage treatment device which can continuously press large amounts of sludge. By using high strength material, the device is characterized in large treating capacity, high dewatering efficiency and long service life. The high quality belt and long life bearing ensure the device’s performance and quality and make it widely used in the sewage treating industries.



2. Advantage

(1) Automatic control and continuous working

(2) Low energy cost and long service life

(3) High dewatering efficiency and high solid containing rate of mud cake

(4) Easy maintenance and management

(5) Low noise and less chemicals

(6) Economical and reliable, wide application.



3. Performance

Scientific design and reasonable layout ensure the high dehydration performance of the filter press. The main pressure roller adopts the hole design which increase the treating capacity and shorten the dehydration time by dewatering at the two sides of belt. The decrescent range of press role and the change contact angle of filter belt ensure the best combination of pressure and shear force so as to improve the solid containing rate and the efficiency of dehydration.



4. Characteristic

The tension of filter belt can be achieved through the air cylinder and keep in a constant. And the tension would not change with the inlet. It’s easy to operate and control. The press is equipped with the air compressor control system which can automatically correct and detect belt’s position on press role. For the belt press with a wider belt, there is an automatic sludge-in device which ensures the sludge can enter into the belt evenly, so as to improve the effect and lengthen theservice life.



5. Structure

The device is equipped with two belts. There is a long gravity dehydration area which can improve the dehydration effect and lower the cost by reducing the usage of chemicals.



6. Technical Parameter Table



Item

Model

RBYL-500

RBYL-700

RBYL-1000

RBYL-1500

RBYL-2000

RBYL-2500

RBYL-3000

RBYL-4000

Main engine

Power

(kw)

1.5

2.2

2.2

2.2

2.2

3

4

4

Air compressor

3

3

3

3

3

3

4

4

Belt width (mm)

500

700

1000

1500

2000

2500

3000

4000

Capacity (m3/h)

3~4

4~6

5~7

8~10

12~15

15~18

18~25

25~30



Overall dimension

Length(mm)

4920

4920

4920

4920

4920

4920

4920

4920

Width(mm)

978

1178

1478

1978

2478

2978

3478

4678

Height(mm)

2350

2350

2350

2350

2350

2350

2350

23500

Feeding concentration

0.8-8%

Discharge concentration

25-45%



 7. Flow Process Diagram

Video Technical Support 1500mm Belt-filter-press-price 500-4000mm Rbyl Belt Filter Press



Video Technical Support 1500mm Belt-filter-press-price 500-4000mm Rbyl Belt Filter Press





Video Technical Support 1500mm Belt-filter-press-price 500-4000mm Rbyl Belt Filter Press

Video Technical Support 1500mm Belt-filter-press-price 500-4000mm Rbyl Belt Filter Press



Video Technical Support 1500mm Belt-filter-press-price 500-4000mm Rbyl Belt Filter Press

Video Technical Support 1500mm Belt-filter-press-price 500-4000mm Rbyl Belt Filter Press

Video Technical Support 1500mm Belt-filter-press-price 500-4000mm Rbyl Belt Filter Press
