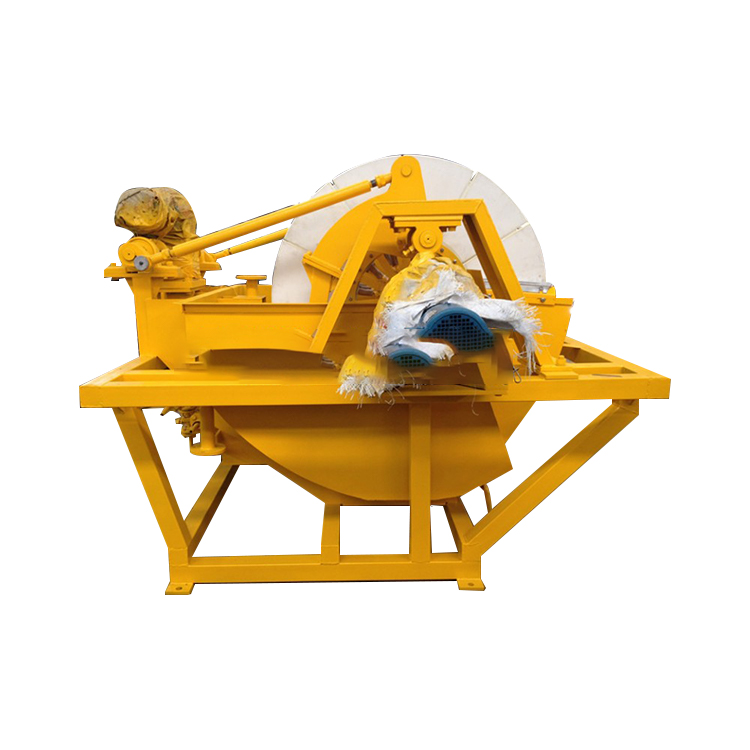

BETTER - Vacuum Ceramic Filter,for Separate Mine Slurry Filtration and Dewatering Equipment Ceramic Vacuum Filter

Technology is the core productive force of our company. We have been focusing on improving and upgrading our currently-used technologies since our inception. For now, we mainly adopt to manufacture the NCINERATOR, DAF, SEWAGE TREATMENT, SLUDGE DEWATEIRNG.It is used in the application(s) of Water Treatment Machinery.

SEND INQUIRY NOW

Model Number:: BTC

Processing Capacity:: 90%

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Sets) , Customized packaging (Min. Order: 1 Sets) , Graphic customization (Min. Order: 1 Sets)

SEND INQUIRY NOW

Products Details

Keeping close up with the latest trend, Shandong Better Environmental Protection Technology Co.,ltd has made Vacuum Ceramic Filter,for Separate Mine Slurry Filtration and Dewatering Equipment a competitive product in the market. It is expected to lead the industry trend and bring benefits to customers. It is consistent with industry standards. Influenced by the market trends and customers' requirements, the design of NCINERATOR, DAF, SEWAGE TREATMENT, SLUDGE DEWATEIRNG is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2022	Warranty of core components:	1 Year
Core Components:	Motor, PLC	Place of Origin:	Shandong, China
Brand Name:	BETTER	Warranty:	1 Year
Productivity:	1000L/Hour	Weight (KG):	1000 kg
After-sales Service Provided:	Online support	Material:	Rack stainless steel with ceramic plates
Color:	Yellow/red/green/etc	Filter plates:	1~14 circles
Plates numbers:	12~168	Cell volume:	0.4~8.1m3
Installation power:	7.6~43.81	Operataing power:	6.6~30.37

Product Description

For more model parameters, please contact us.

Ceramic Disc Vacuum Filter
Product Overview
Ceramic filter is mainly used for fine coal slurry recovery, equipped with an engine base, under the engine base setting a fine coal slurry liquid trough, in this liquid trough, equipped with liquid level controller, both ends with negative pressure water tank, one side of this water tank is equipped with negative pressure connected assembly fix, another side is vacuum pump pipeline connecting with a vacuum pump; on the engine base, there is a coal slurry recovery rotor, this rotor consists of main axle, multilevel ceramic filter disc, stripper plate, multisection effluent connecting pipeline piping support plate, negative pressure
connecting assembly plate. The rotor is located in liquid trough; the ceramic filter disc consists of many ceramic cavity micropore plates, those plates located in a same axes connect by the effluent connecting pipeline.

Working Principle
Ceramic filter shape and mechanism is similar with the working principle of vacuum belt filter, under the effect of pressure difference, suspended matter particle are intercepted on the medium surface then form as filter cake while liquid outflow from filter medium to realize solid-liquid separation. The difference is filter medium, ceramic filter plate is with micropore that can produce wicking effect. That makes the wicking effect stronger than vacuum force, and micropore keep a state full of liquid. In any case, ceramic filter plate don't allow air go through, because of this reason, while solid-liquid separating, energy is saving and vacuum degree is high. Ceramic filter mainly consists of rotor, stirrer, scraper components, slurry trough, distributor, ceramic filter plate, vacuum system, cleaning system, automaticcontrol system etc.

Main Structure
Ceramic filter is mainly consisting of roller system, mixing system, ore slurry feed and discharge system, vacuum system, filtrate discharging system, scraping system, back washing system, united washing system (ultrasonic cleaning, automatic matching acid cleaning), full-automatic control system, trough body, rack etc.

Trough body uses corrosion resistant stainless steel, can load ore pulp. Stirring system is stirring mixing materials in trough body to avoid the rapid subsidence of materials. Ceramic filter plate is installed on roller, roller can be rotated by the drive of stepless speed change reduction gears.

Filter medium of ceramic filter is ceramic filter plate, doesn’t need filter cloth, that reduces cost of production. The 1mm gap between scraper and filter plate prolongs the service life while discharging.

Using back washing and united cleaning etc. methods, full-automatic control by PLC, equipped with inverter, liquid level meter etc. device. While starting up, ore pulp valve is monitored by level meter, it controls height of ore pulp level. When to high level, PLC control system rapidly opens filtrate pump outlet valve to drain water quickly. Ceramic can use long-range control or centralized control according to different requirement by customers.

Application

Company Profile

Our Service

Recommend Products

Packaging and Shipping

Buyer's Praise

FAQ

Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 3 to 4 weeks.

Q: How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. And we will send a technician to guide for installation and debugging. After
debugging equipment, he will teach your workers how to use it and how to maintain it.
