  • Products Details

Shandong Better Environmental Protection Technology Co.,ltd has set up a team which is mainly engaged in product development. Thanks to their efforts, we have successfully developed NCINERATOR, DAF, SEWAGE TREATMENT, SLUDGE DEWATEIRNG and planned to sell it to the overseas markets. In order to guarantee Iron Ore Ceramic Disk Filter, Ceramic Disc Vacuum Filter, 1-60m2 filter area performance, the adopted technologies are technically useful and feasible. Depending on its properties, the product is widely applied in the field(s) of Water Treatment Machinery. Shandong Better Environmental Protection Technology Co.,ltd have realized the importance of technology. In recent years, we have been investing heavily in technology improvement and upgrades and the research and development of new products. In this way, we can occupy a more competitive position in the industry.

Condition:NewApplicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Tajikistan, Japan, Malaysia, AustraliaPlace of Origin:Shandong, China
Brand Name:BetterWarranty:1 Year
After Warranty Service:Video technical support, Online support, Spare parts, Field maintenance and repair serviceLocal Service Location:Egypt, Philippines, Kenya, Argentina, Bangladesh
After-sales Service Provided:Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online supportFilter Area:2-60m2
Capacity:1-50tons/hFrequency/Voltage:Customize
Certificate:ISO9001:2008,SGS,CEMaterial:Q235carbon steel with anti-corrosion paint; 304/316SUS



Product Overview

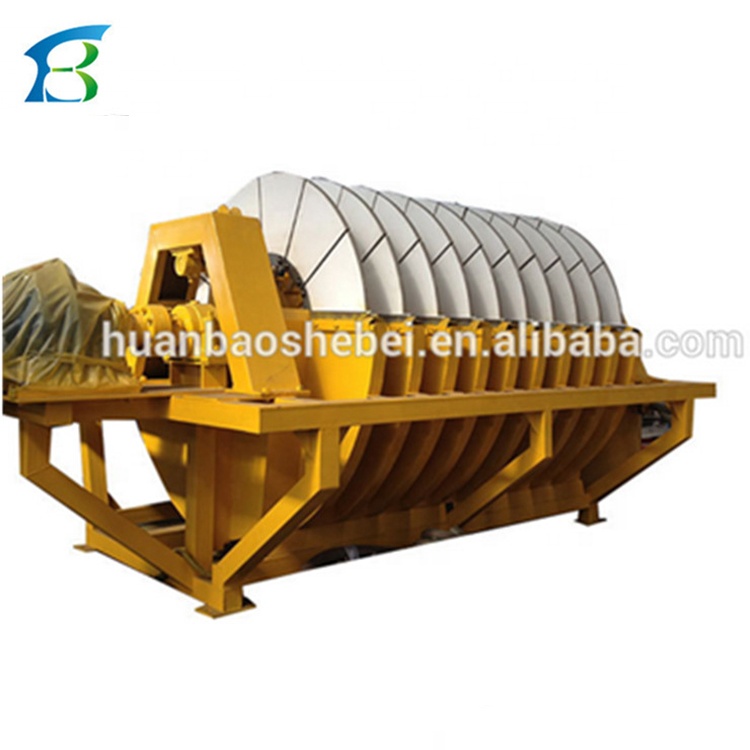

Ceramic filter is mainly used for fine coal slurry recovery, equipped with an engine base, under the engine base setting a fine coal slurry liquid trough, in this liquid trough, equipped with liquid level controller, both ends with negative pressure water tank, one side of this water tank is equipped  with negative pressure connected assembly fix, another side is vacuum pump pipeline connecting with a vacuum pump; on the engine base, there is a coal slurry recovery rotor, this rotor consists of main axle, multilevel ceramic filter disc, stripper plate, multisection effluent connecting pipeline piping support plate, negative pressure connecting assembly plate.



The rotor is located in liquid trough; the ceramic filter disc consists of many ceramic cavity micropore plates, those plates located in a same axes connect by the effluent connecting pipeline.



Main Structure

Ceramic filter is mainly consisting of roller system, mixing system, ore slurry feed  and discharge system, vacuum system, filtrate discharging system, scraping system, back washing system, united washing system (ultrasonic cleaning, automatic matching acid cleaning), full-automatic control system, trough body, rack etc.

Technology  Parameter

model  filters plate(circle)plate qual.(block)tank volume(m3)installed poweroperating powersize(m)(L*W*H)
BTC-1 1 12 0.4 7.6 6.6 2.2*1.95*1.63
BTC-4 2 24 0.79 9 7.32 2.45*2.25*1.83
BTC-6 3 36 0.94 10.5 7.98 2.7*2.25*1.83
BTC-8 4 48 1.28 11.5 8.14 3.04*2.25*1.83
BTC-12 6 72 1.79 13 7.96 3.6*2.25*1.83
BTC-24 8 96 3.96 23 16.28 4.45*2.85*2.25
BTC-30 10 120 4.6 25.15 17.95 5.1*2.85*2.24
BTC-45 10 120 5.9 40 30.4 5.7*3.2*2.5
BTC-60 14 168 8.1 43.81 30.37 6.82*3.2*2.5


Detailed Images
