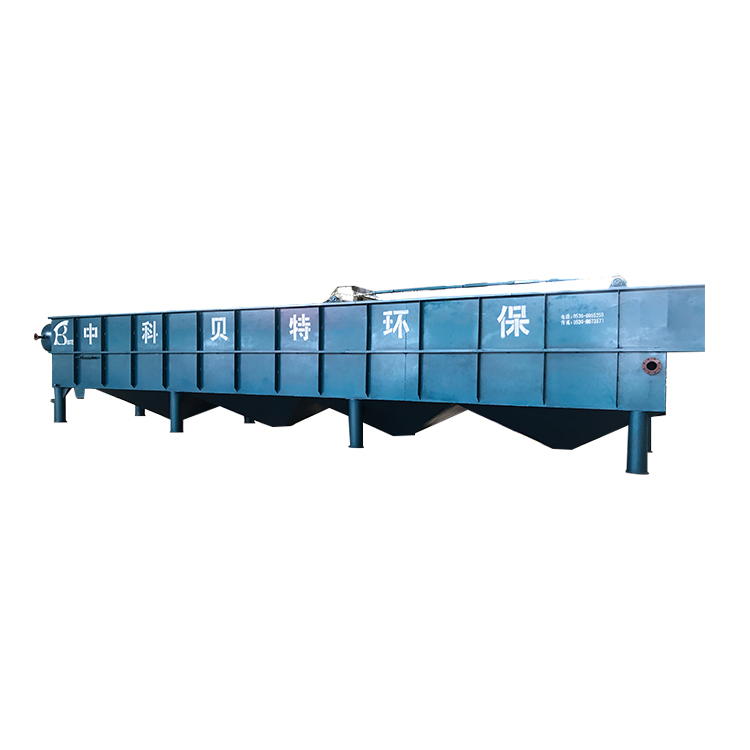

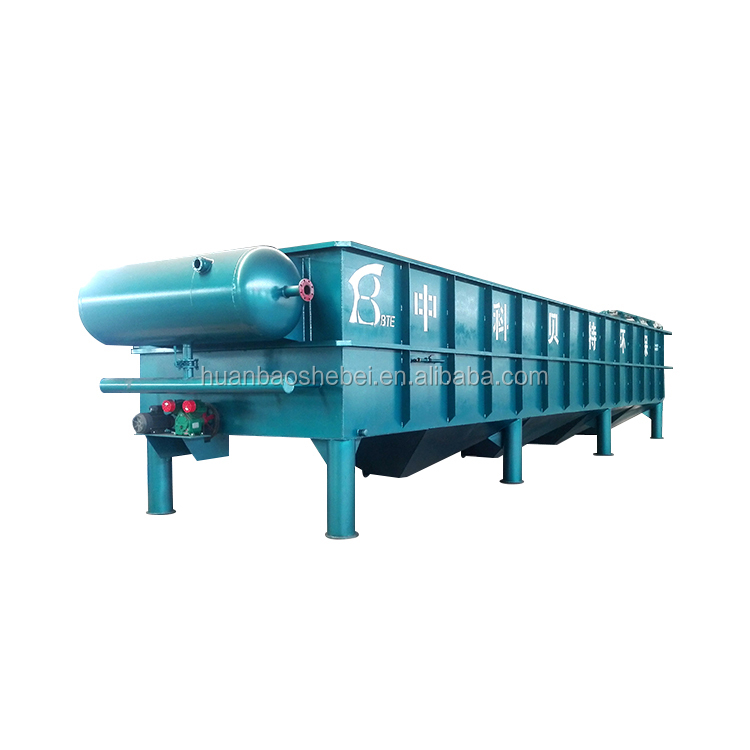

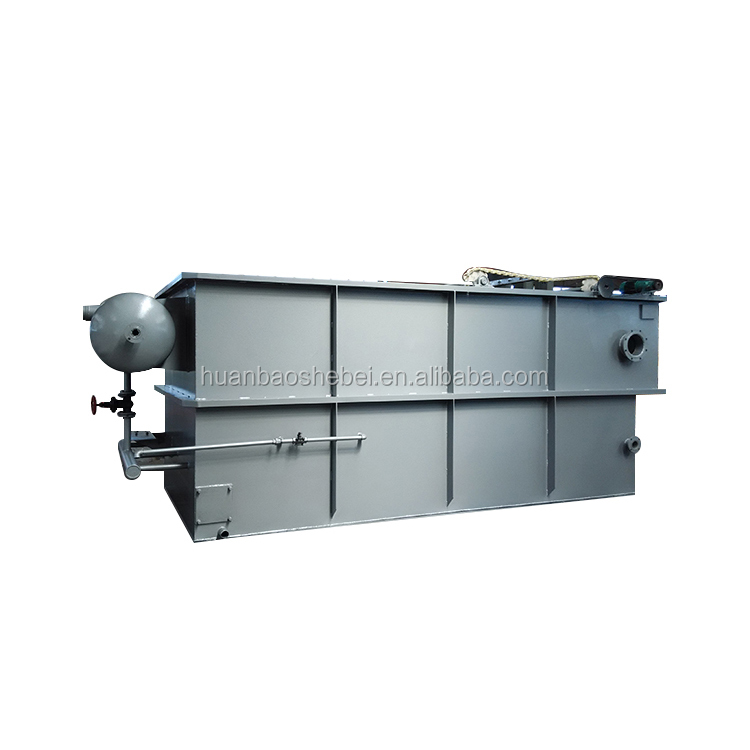

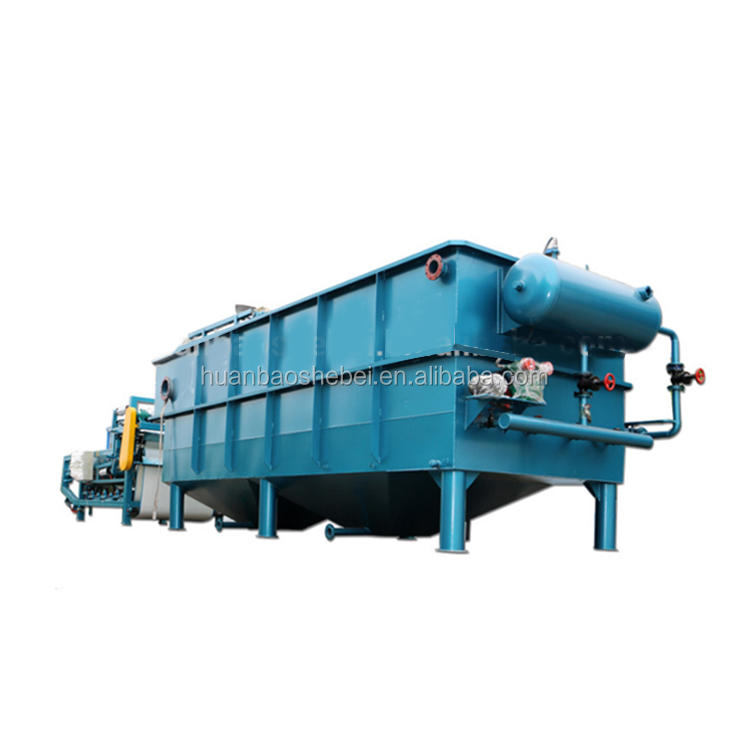

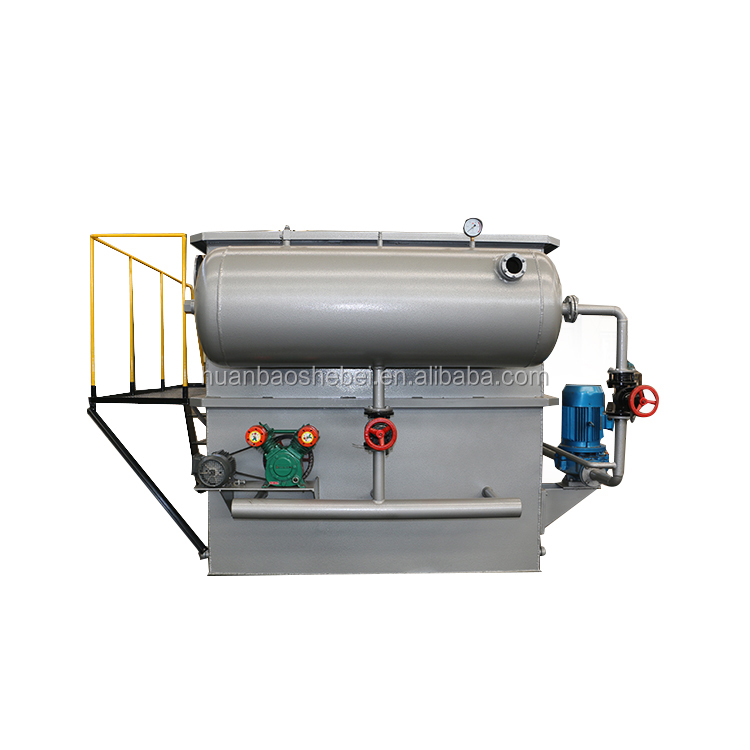

In the past months,Shandong Better Environmental Protection Technology Co.,ltd has been devoted to serious design and innovative development of the new product. It is officially called DAF-Dissolved Air Flotation sewage treatment plant of distillery/wine-distillery sewage/alcohol wastewater treatment and releases to the market since today. It has been proved that techniques can efficiently improve work efficiency and ensure product performance.It has extensive uses in the application field(s) of Water Treatment Machinery. In aspect of the product design, our design team always pays close attention to the customers' taste and industry trends. Thanks to this, our DAF-Dissolved Air Flotation sewage treatment plant of distillery/wine-distillery sewage/alcohol wastewater treatment can fully attract people's attention with its unique appearance. Moreover, it is excellent performance, making it worth the investment.

Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising CompanyShowroom Location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Video outgoing-inspection:ProvidedMachinery Test Report:Provided
Marketing Type:New Product 2022Warranty of core components:1 Year
Core Components:Motor, PLCPlace of Origin:Shandong, China
Brand Name:BETTERWarranty:1 Year
Productivity:1000L/HourWeight (KG):1000 kg
After-sales Service Provided:Video technical supportMaterial:Stainless Steel/carbon steel
Capacity:1~200m3/hFunction:Remove oil, tss. etc
power:customizeApplication:Waste Water Treatment
Type:sewage treatmentColor:customize
Product name:Dissolved Air FlotationName:Sewage Treatment Equipment

Product Description
For more model parameters, please contact us.
1. Description
YW series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.
2. Application
(1) Remove oil and TSS.
(2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
3. Features
(1) Large capacity, high efficiency and small occupying space.
(2) Compact structure, easy operation and maintenance.
(3) Silt expansion elimination.
(5) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water.
Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
(6) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and
more algae.
Suitable area:
slaughtering, starch, pharmaceuticals, papermaking, printing and dyeing,
leather and tannery, petrochemical industry, domestic wastewater, etc.

4. Flow Process Diagram
5. Technical Parameter
Specification
Capacity
(m3/h)
Dissolved
gas water
(m3/h)
Main
dynamo
power (kw)
Foam
scraper
power(kw)
Air
compressor
power(kw)
Dissolved air
tank size
(mm)
Overall dimension
(mm)
YW-5
2-5
1.5-2
3
0.55
1.5
Φ400x1000
3300x1800x2200
YW-10
8-10
2-3
4
0.55
1.5
Φ500x1512
4000x2100x2200
YW-20
15-20
5-7
7.5
055
1.5
Φ500x1512
4600x2400x2200
YW-30
20-30
6-10
7.5
0.55
1.5
Φ500x1512
5200x2600x2400
YW-40
30-40
8-13
7.5
0.75
2.2
Φ600x1880
6000x2600x2400
YW-50
40-50
15-20
7.5
0.75
2.2
Φ600x1880
7000x2600x2400
YW-60
50-60
18-27
11
0.75
2.2
Φ600x1880
7600x2800x2400
YW-70
60-70
22-30
11
0.75
3
Φ650x2034
8400 x2800x2400
YW-80
70-80
24-32
11
0.75
3
Φ650x2034
9200x2800x2400
YW-100
90-105
30-35
15
0.75
4
Φ700x1980
10000x2800x2600
YW-150
125-150
60-80
22
1.1
4
Φ800x1980
13500x2800x2600
YW-200
175-200
80-100
22
1.1
5.5
Φ800x2100
15800x2800x2600
YW-250
225-250
110-120
22
1.1
5.5
Φ800x2400
15200x3400x2600
YW-300
280-300
120-180
37
1.1
5.5
Φ1000x2900
19200x3400x280
Application
Company Profile
Our Service
Recommend Products
Packaging and Shipping
Buyer's Praise
FAQ
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 3 to 4 weeks.

Q: How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. And we will send a technician to guide for installation and debugging. After
debugging equipment, he will teach your workers how to use it and how to maintain it.
