Since our inception, Shandong Better Environmental Protection Technology Co.,ltd has been engaged in the R&D of products to keep us ahead of other competitors in the industry. It's designed out of the needs of our customers. Performance DAF Dissolve Gas Flotation Clarifier, Slaughtering wastewater treatment device,Oil Grease Remove System is not only manufactured to draw the attention of people but also to bring them convenience and benefits. Designed by creative designers, NCINERATOR, DAF, SEWAGE TREATMENT, SLUDGE DEWATEIRNG presents a style of aesthetics. In addition, it is excellent characterized thanks to the adopted high-quality raw materials and high-end technologies.
Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, United Kingdom, United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia |
Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | New Product 2022 | Warranty of core components: | 1 Year |
Core Components: | Motor | Place of Origin: | Shandong, China |
Brand Name: | Better | Warranty: | 1 Year |
Productivity: | 500L/Hour | Weight (KG): | 500 kg |
Product name: | Slaughtering wastewater treatment device,Oil Grease Remove System | Series: | YW |
Color: | Silver Grey/Blue/Customized | Material: | Carbon Steel |
Capacity: | 4-300m3/h | Function: | slaughtering wastewater pre-treatment |
Application: | slaughtering | Usage: | oil grease remove |
key words: | dissolved gas flotation clarifier |
1. Description

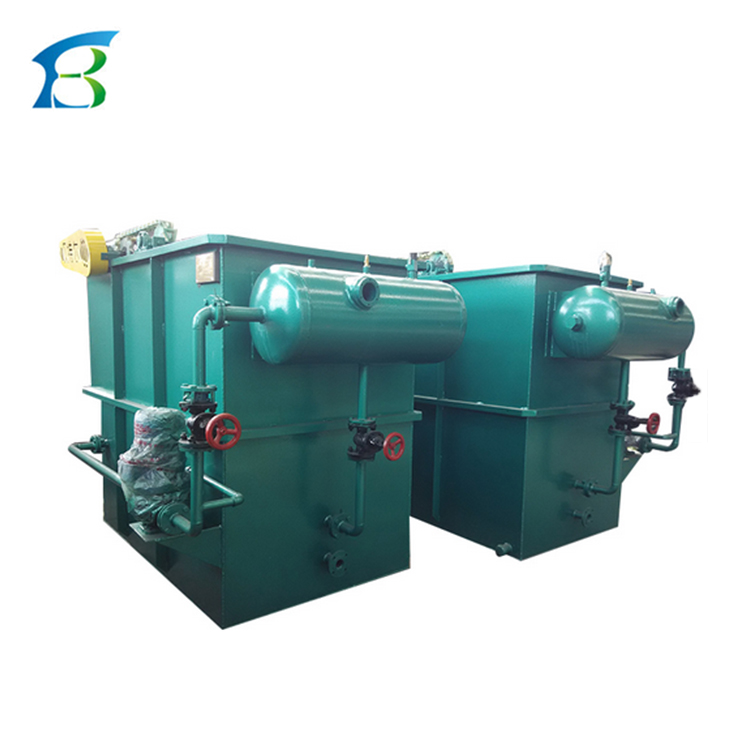

YW series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation.
Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.
2. Application
(1) Remove oil and TSS.
(2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
3. Features
(1) Large capacity, high efficiency and small occupying space.
(2) Compact structure, easy operation and maintenance.
(3) Silt expansion elimination.
(5) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
(6) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.
Suitable area:
slaughtering, starch, pharmaceuticals, papermaking, printing and dyeing,
leather and tannery, petrochemical industry, domestic wastewater, etc.
4. Flow Process Diagram
1. Clear water reservoir 2. Clear water pump 3. Control valve 4.5. Pressure gage 6. Dissolved gas tank
7. Control valve 8. Air compressor 9. Releaser 10. Foam scraper 11. Air floating pond 12. Water collector
13. Jet device 14. Control valve 15. Dosing tank 16. Sewage pump 17. Flow meter 18. Sewage pond
5. Technical Parameter
Specification |
Capacity (m3/h) |
Dissolved gas water (m3/h) |
Main dynamo power (kw) |
Foam scraper power(kw) |
Air compressor power(kw) |
Dissolved air tank size (mm) |
Overall dimension (mm) |
YW-5 |
2-5 |
1.5-2 |
3 |
0.55 |
1.5 |
Φ400x1000 |
3300x1800x2200 |
YW-10 |
8-10 |
2-3 |
4 |
0.55 |
1.5 |
Φ500x1512 |
4000x2100x2200 |
YW-20 |
15-20 |
5-7 |
7.5 |
055 |
1.5 |
Φ500x1512 |
4600x2400x2200 |
YW-30 |
20-30 |
6-10 |
7.5 |
0.55 |
1.5 |
Φ500x1512 |
5200x2600x2400 |
YW-40 |
30-40 |
8-13 |
7.5 |
0.75 |
2.2 |
Φ600x1880 |
6000x2600x2400 |
YW-50 |
40-50 |
15-20 |
7.5 |
0.75 |
2.2 |
Φ600x1880 |
7000x2600x2400 |
YW-60 |
50-60 |
18-27 |
11 |
0.75 |
2.2 |
Φ600x1880 |
7600x2800x2400 |
YW-70 |
60-70 |
22-30 |
11 |
0.75 |
3 |
Φ650x2034 |
8400 x2800x2400 |
YW-80 |
70-80 |
24-32 |
11 |
0.75 |
3 |
Φ650x2034 |
9200x2800x2400 |
YW-100 |
90-105 |
30-35 |
15 |
0.75 |
4 |
Φ700x1980 |
10000x2800x2600 |
YW-150 |
125-150 |
60-80 |
22 |
1.1 |
4 |
Φ800x1980 |
13500x2800x2600 |
YW-200 |
175-200 |
80-100 |
22 |
1.1 |
5.5 |
Φ800x2100 |
15800x2800x2600 |
YW-250 |
225-250 |
110-120 |
22 |
1.1 |
5.5 |
Φ800x2400 |
15200x3400x2600 |
YW-300 |
280-300 |
120-180 |
37 |
1.1 |
5.5 |
Φ1000x2900 |
19200x3400x2800 |
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
Feel free to contact us
"There is no best; only better", we are dedicated to make every effort to help create Better global environmental protection!
